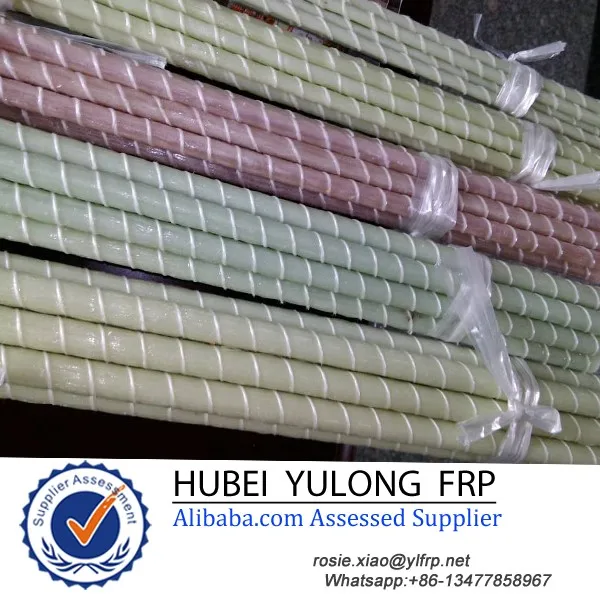

Fiberglass Pultruded FRP Rebar, Anti-corrosion Plastic GRP Rebar
Features:
l Corrosion resistant
l High strength & light weight
l Long service life
l Fire retardant
l Impact resistant
l Nonconductive and thermal insulation
l Non-magnetic electromagnetic transparency
l Dimensional stability, Bright color
l Low-maintenance

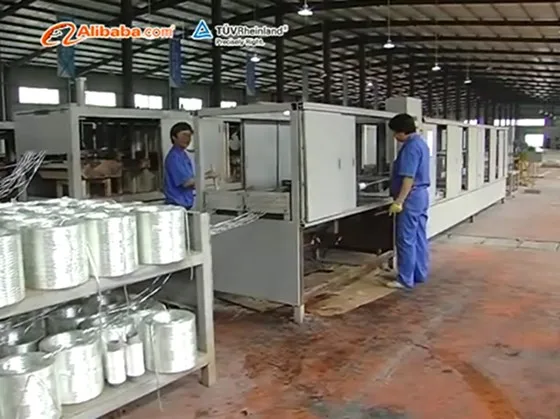

Pultrusion Technique:
During the pultrusion process, the raw materials are pulled through a heated steel forming die using a continuous pulling device. FRP Pultruded Profile are made of different resins reinforced with fiberglass, by pultrusion technology.
Physical Property:
Product name: | Pultruded FRP Rebar |
Place of Origin: | Hubei, China |
Brand Name: | Yulong |
Dimension(mm): | Customized dimension & colors are both available. |
Raw Materials: | l Reinforcement material: Fiberglass, glass mat, continuous strand mat, surfacing mat, needled mat. l Basis material: Unsaturated polyester resin, epoxy resin, vinylester resin |
Color: | Grey, Blue, Yellow, Red, other customized colors |
Density: | 1.5-2.0 g/cm3 |
MOQ: | 1*20ft |
Price: | EXW, FOB, CNF, CIF |
Port: | Yichang Port |
Packaging Details: | Plywood pallet with plastic wrapped for packing |
Delivery Time: | About 5-10 days after deposit received |
Payment Terms: | TT,L/C, Western Union, Money Gram |
Supply Ability: | 6000m/week |
Diameter /mm | Cross Section/cm2 | Weight Kg/m | Ultimate Tensile Strength/MPa | Ultimate Shearing Strength/MPa | E-Modulus/GPa |
4 | 0.12 | 0.032 | 1500 | >150 | >40 |
6 | 0.28 | 0.051 | 1280 | >150 | >40 |
8 | 0.50 | 0.098 | 1080 | >150 | >40 |
10 | 0.73 | 0.150 | 980 | >150 | >40 |
12 | 1.03 | 0.210 | 870 | >150 | >40 |
14 | 1.34 | 0.275 | 764 | >150 | >40 |
16 | 1.80 | 0.388 | 752 | >150 | >40 |
18 | 2.48 | 0.485 | 744 | >150 | >40 |
20 | 2.78 | 0.570 | 716 | >150 | >40 |
22 | 3.55 | 0.700 | 695 | >150 | >40 |
25 | 4.78 | 0.970 | 675 | >150 | >40 |
28 | 5.90 | 1.195 | 702 | >150 | >40 |
30 | 6.71 | 1.350 | 637 | >150 | >40 |
32 | 7.40 | 1.520 | 626 | >150 | >40 |

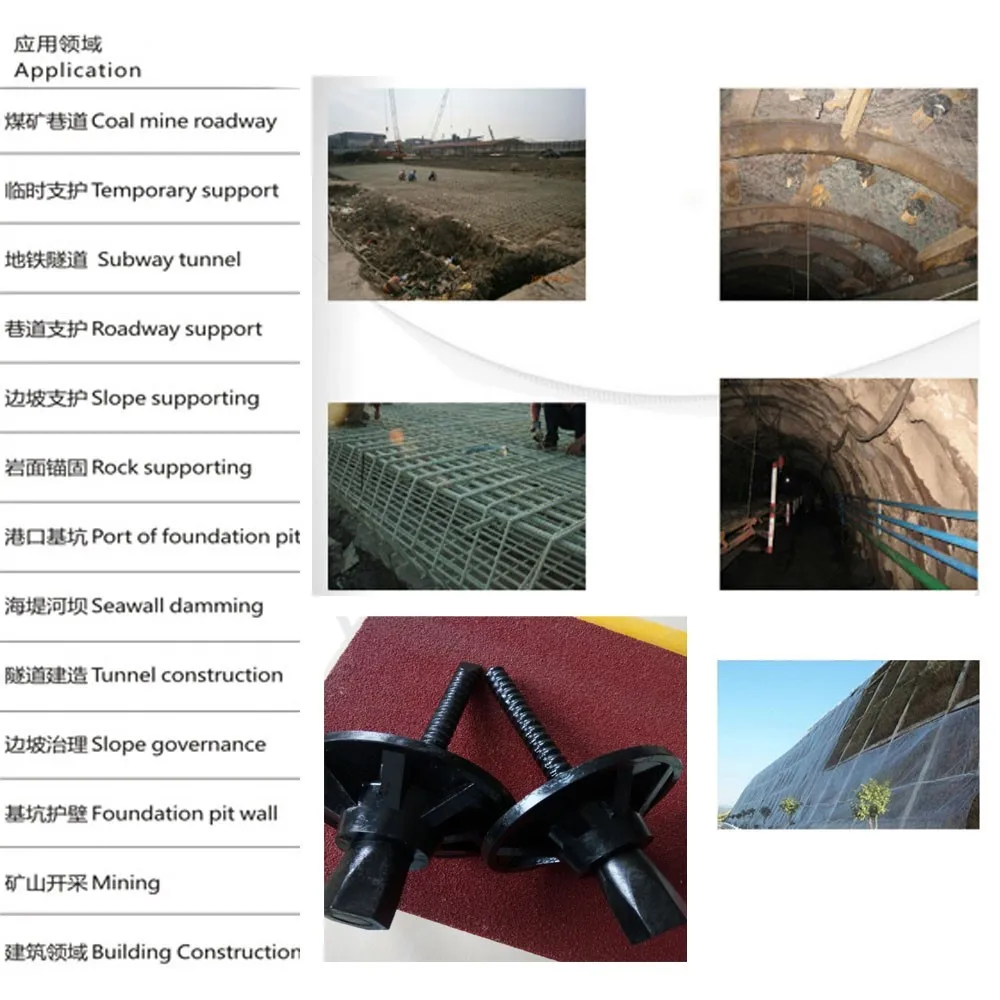

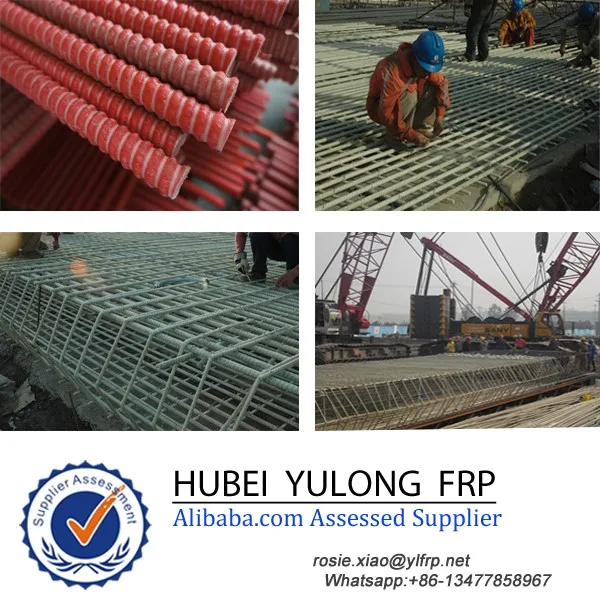

Application:
l Electrical & Electronics Industry: cable tray, radome, insulation ladder, etc.
l Chemical Anti-corrosion Industry: grating floor, handrail, working platform, underground pression pipe, stairs, etc.

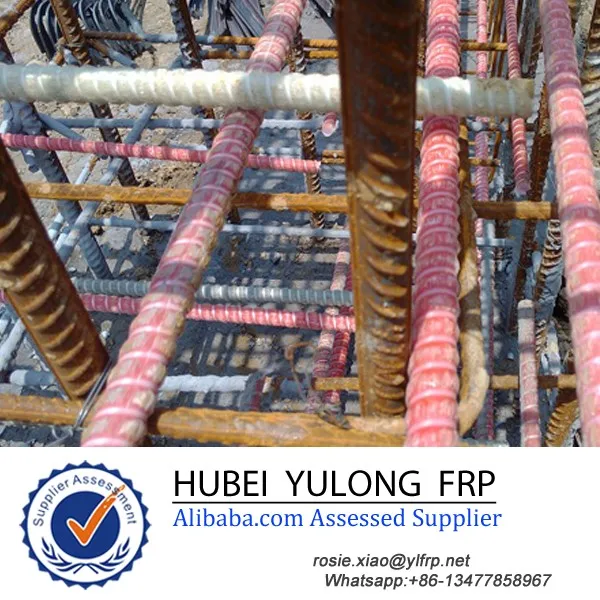

l Building Construction Industry: oversize bridge protection closed system, movable house structure, working platform, window frame, window sash and its components, etc.
l Foundation Engineering Industry: freeway antiglare shield and its handrail, lamp post, water treatment, bracket foe huge industry cooling tower, etc.
